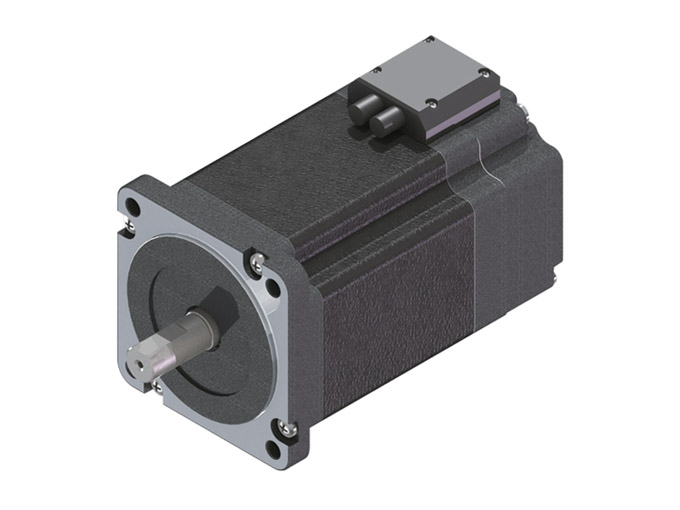

BackCurrent location：Home / Products / Hybird Servo Motor / 57H3F Series hybird servo motor
Category：Hybird Servo Motor
National Service Hotline:0519-89868988
| 步距角 Step Angle | 1.2° |
| 绝缘电阻 Insulation Resistancce | 500V DC 100MΩ Min |
| 绝缘强度 Dielectric Strength | 500V AC 50Hz 2mA 1Minute |
| 环境温度 Ambient Temperature | -20~+40℃ |
| 温升 Temperature Rise | 80K Max |
| 绝缘等级 Insulation Class | B |
型号 | 机身长度 | 额定电压 | 额定电流 | 绕组电参数 | 静力矩 Static moment | 转子惯量 | 电机质量 | ||||
@20℃ | Typ. | ||||||||||
mm | V | Amps | Ohms | mH | N.m | oz-in | g.cm2 | oz-in2 | Kg | Lbs | |
57H3F77-E | 77 | 4.8 | 4.0 | 1.2 | 2.2 | 0.90 | 128 | 215 | 1.2 | 0.6 | 1.3 |
57H3F100-E | 100 | 7.2 | 4.0 | 1.8 | 3.8 | 1.80 | 255 | 380 | 2.2 | 1.0 | 2.3 |
57H3F114-E | 114 | 9.2 | 4.0 | 2.3 | 4.7 | 2.30 | 326 | 512 | 2.9 | 1.3 | 2.8 |
以上产品可根据客户要求定制。
Above Products can be customized according to customer requirement
注意：装配时，须保证电机轴和负载轴的同心，严禁敲打，以免损坏电机。
Note: when installing the motor, must ensure that the motor shaft and load shaft concentric,never hit it, so as not to damage the motor.
