| 步距角 Step Angle | 1.2° |
| 绝缘电阻 Insulation Resistancce | 500V DC 100MΩ Min |
| 绝缘强度 Dielectric Strength | 1000V AC 50Hz 2mA 1Minute |
| 环境温度 Ambient Temperature | -20~+40℃ |
| 温升 Temperature Rise | 80K Max |
| 绝缘等级 Insulation Class | B |

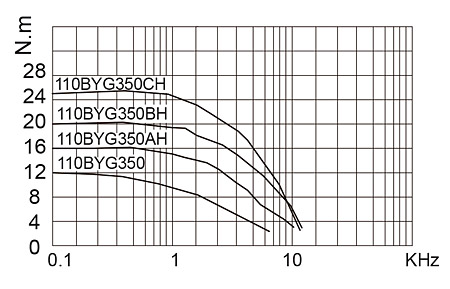

型号 | 运行电压 | 额定电流 | 电阻 | 电感 | 保持转矩 | 空载频率 | 起动频率 | 重量 | 长度 |
VDC | A | Ω | mH | N.m | Hz | Hz | kg | mm | |
110BYG350 | 80~325 | 3 | 1.13 | 18 | 12 | 20000 | 3000 | 9.4 | 169 |
110BYG350AH | 80~325 | 3 | 1.36 | 16.6 | 16 | 20000 | 3000 | 10.7 | 197 |
110BYG350BH | 80~325 | 3 | 1.28 | 21.5 | 19 | 20000 | 3000 | 12.5 | 224 |
110BYG350CH | 80~325 | 3 | 1.48 | 24 | 25 | 20000 | 3000 | 14.0 | 252 |
以上产品可根据客户要求定制。
Above Products can be customized according to customer requirement
注意：装配时，须保证电机轴和负载轴的同心，严禁敲打，以免损坏电机。
Note: when installing the motor, must ensure that the motor shaft and load shaft concentric,never hit it, so as not to damage the motor.
