| 步距角 Step Angle | 1.2° |
| 绝缘电阻 Insulation Resistancce | 500V DC 100MΩ Min |
| 绝缘强度 Dielectric Strength | 1000V AC 50Hz 2mA 1Minute |
| 环境温度 Ambient Temperature | -20~+40℃ |
| 温升 Temperature Rise | 80K Max |
| 绝缘等级 Insulation Class | B |

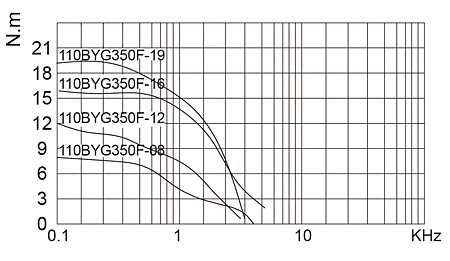

型号 | 运行电压 | 额定电流 | 电阻 | 电感 | 保持转矩 | 转子惯量 | 重量 | 长度 |
VDC | A | Ω | mH | N.m | g.cm2 | kg | mm | |
110BYG350F-08 | 80~220 | 3 | 0.93 | 9.3 | 8 | 6200 | 5.5 | 128 |
110BYG350F-12 | 80~220 | 3 | 1.38 | 9.58 | 12 | 10000 | 6.9 | 152 |
110BYG350F-16 | 80~220 | 3 | 1.45 | 20.5 | 16 | 12500 | 9.0 | 185 |
110BYG350F-19 | 80~220 | 3 | 1.38 | 22.5 | 19 | 16900 | 10.8 | 212 |
以上产品可根据客户要求定制。
Above Products can be customized according to customer requirement

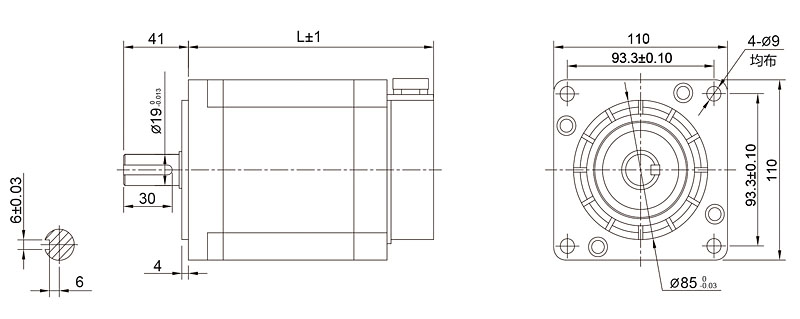

注意：装配时，须保证电机轴和负载轴的同心，严禁敲打，以免损坏电机。
Note: when installing the motor, must ensure that the motor shaft and load shaft concentric,never hit it, so as not to damage the motor.
